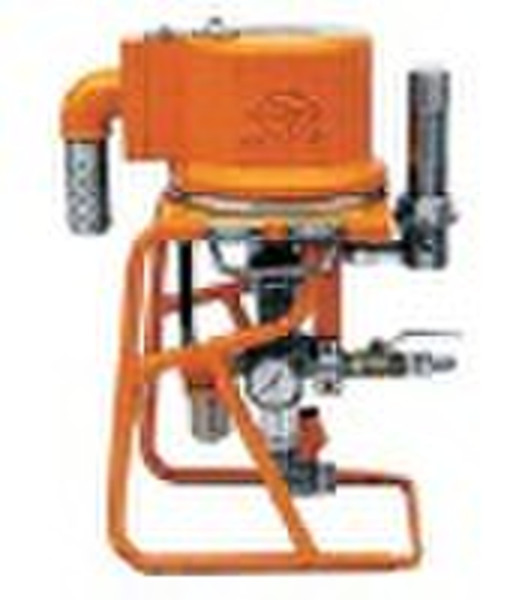

airless spray equipmentGPQ13C

main technical parameters(airless spray equipment)pressure ratio:46:1No-load displacement:18L/minInlet pressure:0.3-0.6MpaLargest nozzle:020B40Air consumption:300-1600L/minQuality:28.5kgDimensions:400x340x600 (mm) Note1, no-load displacement is empty paint hydraulic system steady-state conditions displacement 2, test medium: 20 # machinery oil, medium temperature :0-60 .3, the largest nozzle is that I plant to develop and produce the gas nozzle without # the scope of application1, take the tough long-term preservation of spray paint. Such as: pulp thick asphalt-epoxy coatings, modified epoxy coatings, epoxy natural mica iron oxide coating, high in the solvent-free solid epoxy coatings, super epoxy paint, Tu Fu, such as new high-performance polyurethane coatings Paint.2, all kinds of conventional paint. Such as: chlorinated rubber coating, PF, alkyd, amino, nitro, acrylic, latex paint and other architectural coatings.3, could also be used, such as mine where the larger gap between the high-voltage transmission fluid.
